- New design and upgraded model
- Elektra, designed and produced in Italy
- Clean and safe form of heating and hot water solution
- Suitable for radiators and underfloor heating
- Continuous hot water for its size
- Built-in smart controls
- 240v single phase
- Uses 50 Amps
- Use a 10mm cable
- Flowrate: up to 13 Lt/min (Click here to check the hot water graph)
- Completely silent due to Triac-Based Technology
- Modulates from 2kW – 12kW
- Digitally displayed temperatures

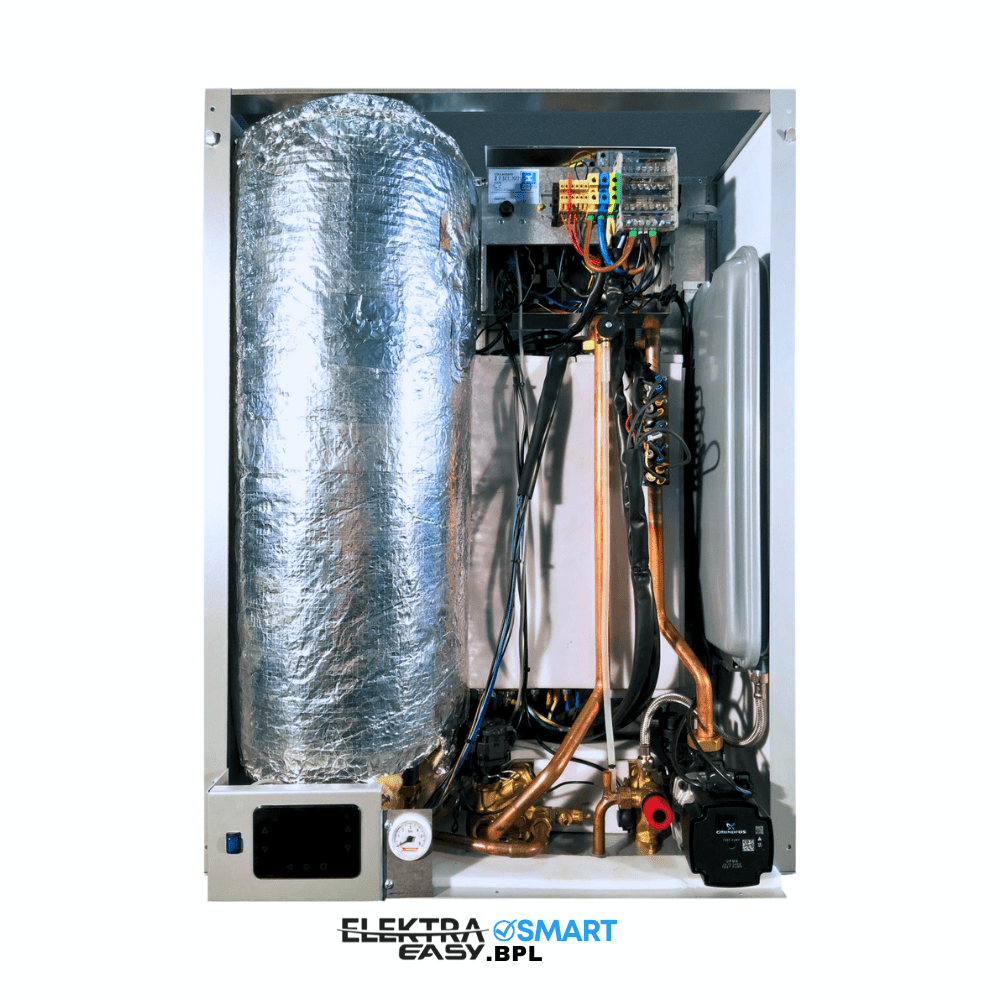

- 37.5 L glass lined, insulated steel cylinder with inspection flange, fitted with magnesium anode, mounted with insulated boiler casing
- Can be used with radiators or under-floor heating
- Anti Legionella function means the temperature of the cylinder is automatically raised to 65°C to eliminate legionella bacteria
- Simply connect flow and return from the heating circuit and cold supply for HW
- All components, for the normal function of the boiler are included inside
- Hot water limited to 65°C
- Central heating limited to 75°C
- Economical (see blue chart below) installer and user-friendly.
- 5 Years warranty – subject to boiler connected to internet & service booking (2 years standard)
- 1 x Elektra BP Electric Combi Boiler
- 2 x 22mm Isolation Valves
- 1 x 15mm Isolation Valves
- 1 x Bracket
All Parameters are the same for Elektra C & BP.
As BP has built in Cylinder. The Hot water delivery is better.
Has stored hot water over 50 litres at 60°C- 65°C ( 37.5 l in Cylinder 10-12 li in the central heating reservoir).
Although set at 8 litres/min can be adjusted up to 13 litres/min for faster fill of the bath.
Factory setting @ 8l/min is perfect for filling the bath and having a shower because the hot water is being delivered at a higher temperature.
It will be possible to have two showers running simultaneously, say 4 litres/minute to each tap then mixed with cold water to bring the flow rate up to 6-8 litres/minute, (this would be dependent on water pressure in the house).
Uses initially only 2kw to heat the water in the cylinder and only uses more kW depending on the temperature rise needed.
And may go up to a full 12kw in time.
If you increase the flow rate to 13 litres/min, in time the heat exchange balance will be lost and the time-temperature will decrease to below 38°C
Important facts to remember:
A. An average shower uses 21-25 litres of water. Elektra BP holds enough water and backs up the cylinder with a constant supply of hot water as per Elektra C for continuous delivery of Hot Water.
B. According to BS6700 a standard 1700 x 700 needs 100 litres of water @ 40°C. This is split into 60% HW and 40% CW.
Elektra BP (preset at 8Li/min) will fill the bath faster.
The cold water mains pressure going into the boiler should be a maximum of 2 bar. If the pressure is more than 2 bar, install pressure reducing valve and set it between 1.5 – 2.0 bar pressure.
Graph (Hot water output):
Based in London or Berkshire? You can also come to pick the boiler up in person from our Windsor office :
Electric Combi Boilers Company, Green Acres, Oakley Green Road, Windsor, SL4 4QF
For more information: Contact our Windsor branch on 01628 636 099
