Price range: £1,900.00 through £2,150.00
Central heating, showers and baths. Built-in storage and smart control.

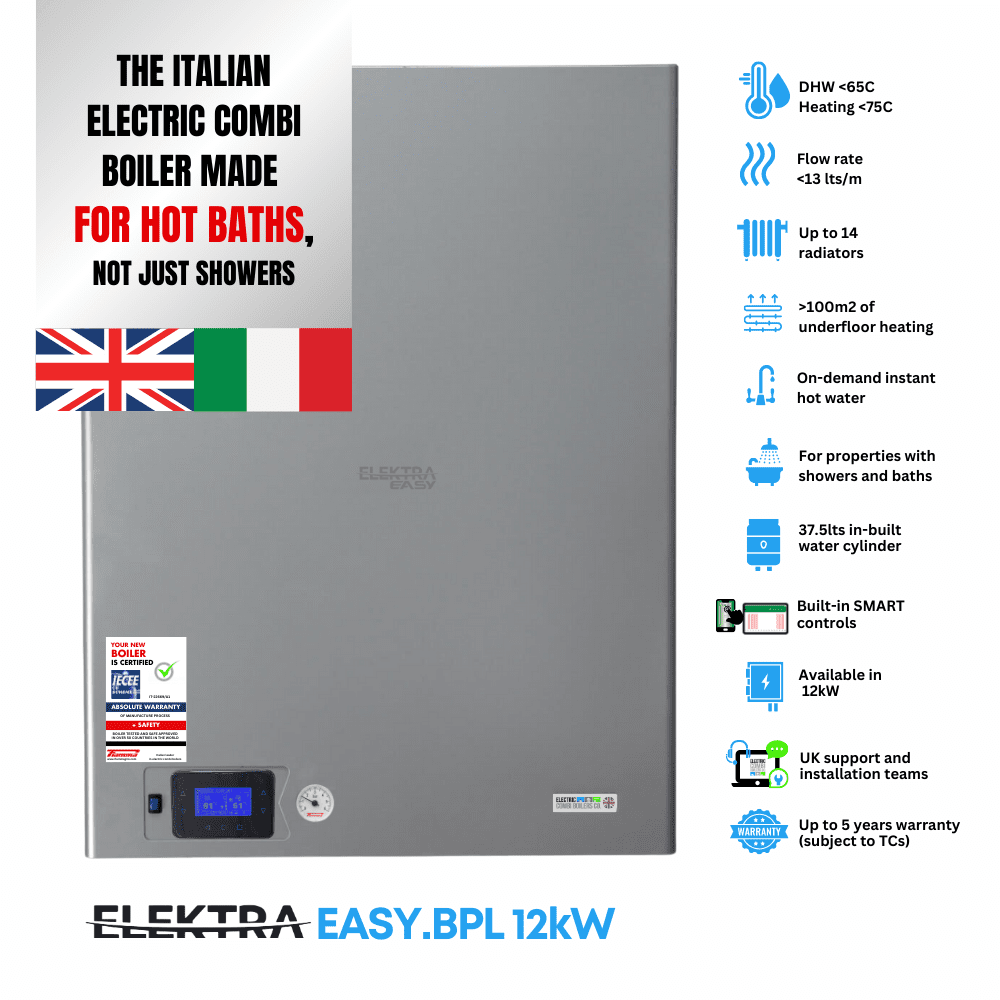

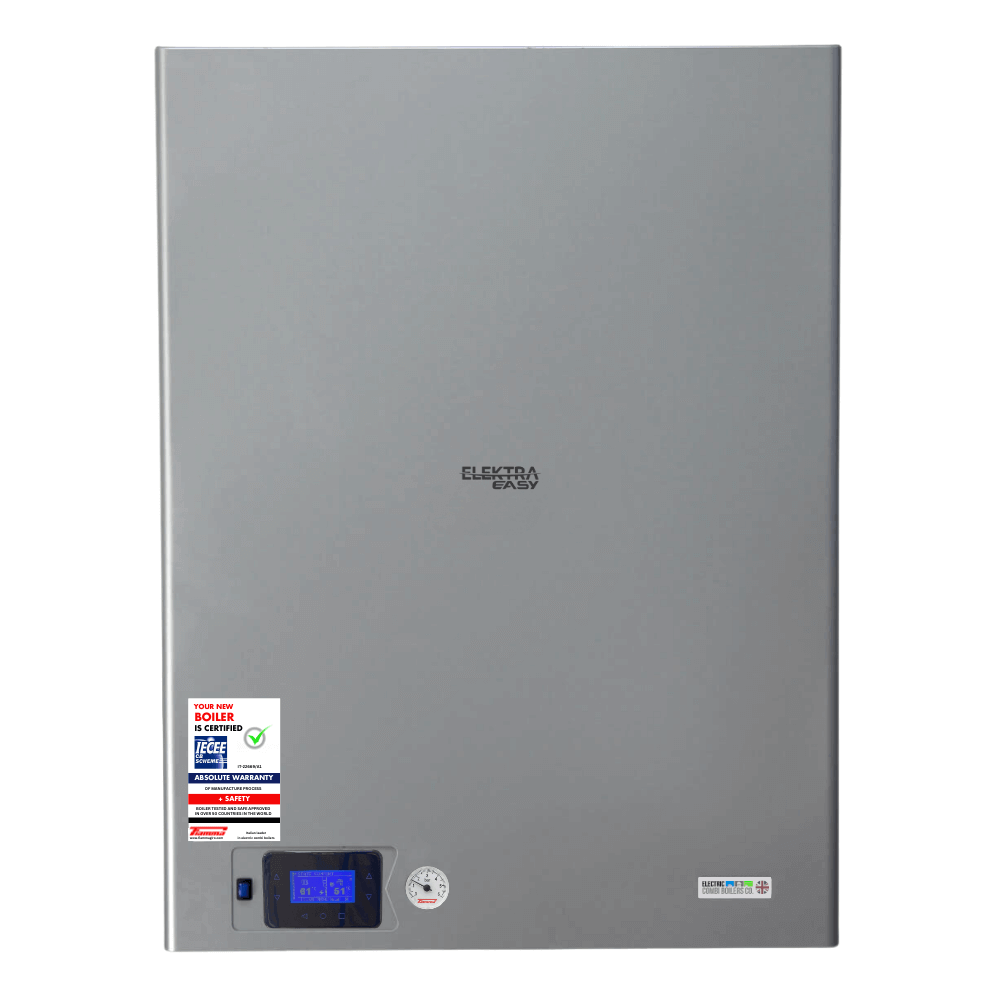

The ELEKTRA EASY.BPL 12kW combines electric central heating with a built-in 37.5-litre hot-water cylinder. Its cabinet format provides another option when planning the boiler position and available installation space.
British-designed. Manufactured in Italy. Supported in the UK.
Not sure if this boiler is right for your property? Our technical team can help you check before ordering.

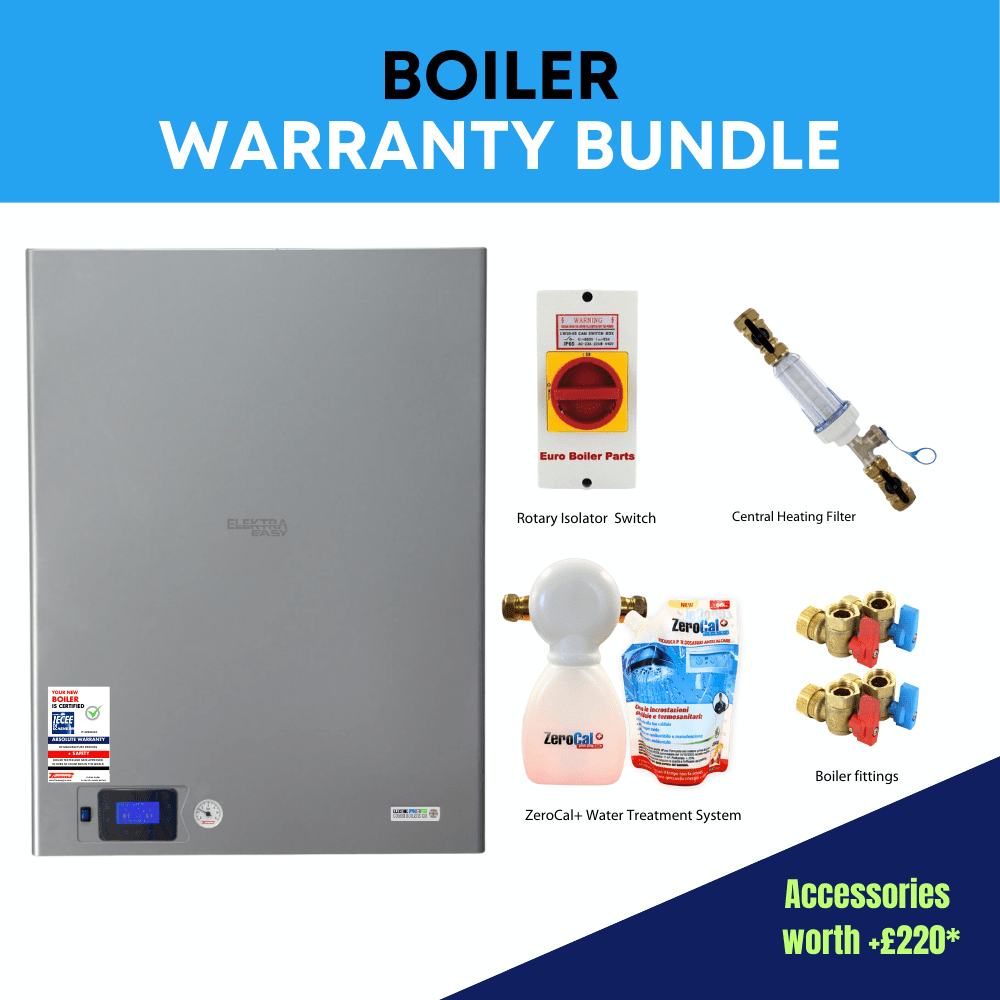

| CHOOSE YOUR OPTIONS | ELEKTRA EASY.BPL boiler only, ELEKTRA EASY.BPL + COMPLETE WARRANTY BUNDLE, ELEKTRA EASY.BPL + ESSENTIAL WARRANTY BUNDLE |
|---|---|
| Bath Suitability | Yes |
| Boiler Power | 12 kW |
| Electrical Supply | Single Phase |
| Heating Suitability | Radiators, Underfloor Heating |
| Hot Water System | With Internal Cylinder |
| Main Fuse rating | 100A, 80A |
| Shower Suitability | Multiple Showers |
| Smart Controls | Yes |
| Function | Combi: central heating and domestic hot water |
|---|---|
| Rated electrical input | 12 kW |
| Electrical supply | Single phase |
| Power draw: brochure reference | 50 A |
| Modulation | 2-12 kW |
| Domestic hot-water storage | 37.5 litres, built in |
| Appliance dimensions H x W x D | 875 x 453 x 455 mm |
| Appliance weight | 58 kg |
| Packing dimensions H x W x D | 940 x 500 x 520 mm |
| Packed weight | 61 kg |
| Minimum clearances: brochure | 300 mm top and bottom; verify installation manual |
| Bath filling | Yes, subject to demand and operating conditions |
| Hot-water flow reference at 38°C | <13 L/min; operating conditions require confirmation |
| Controls | Built-in smart controls; ECO and COMFORT hot-water modes |
| Supply voltage and frequency | 230-240V, 50Hz; single phase |

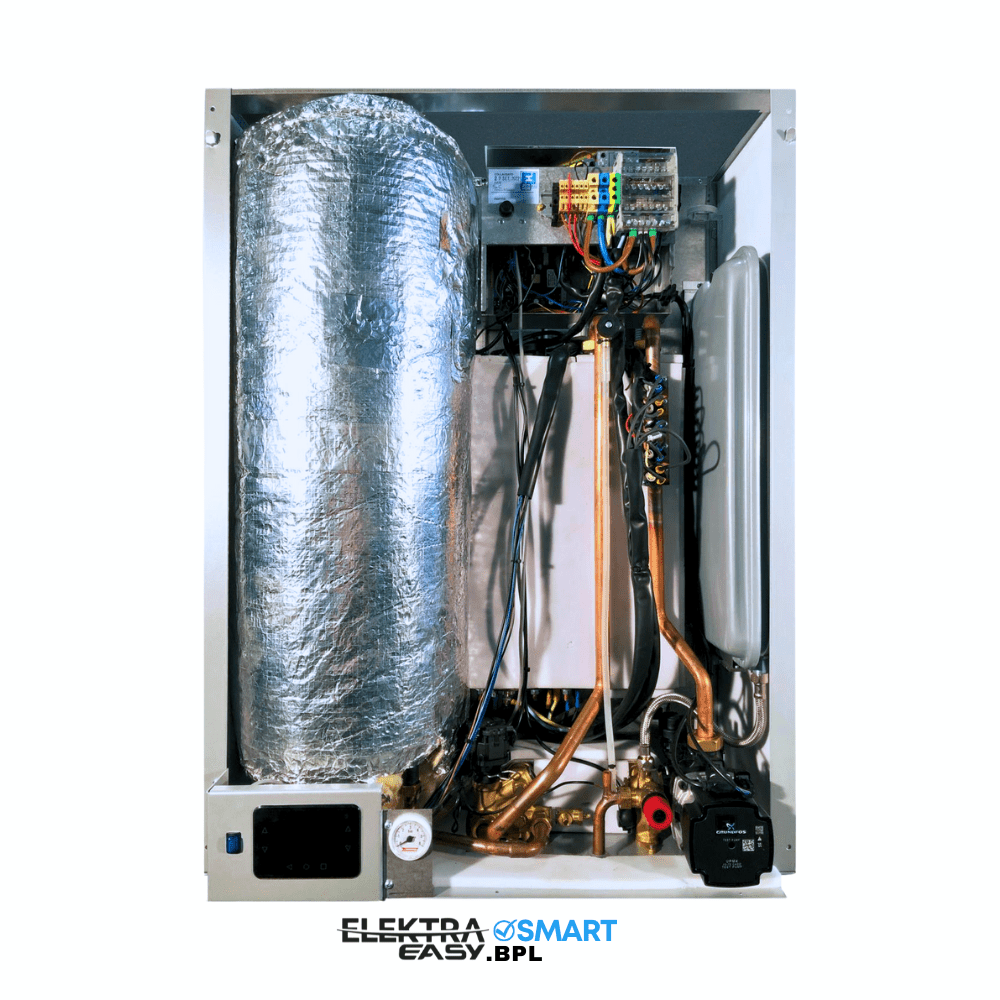

| Tank construction | Vitrified steel; inspection flange and magnesium anode |
| Domestic hot-water tank heater | 2kW; controlled within the boiler power-management arrangement |
| Heating expansion vessel | 9 litres |
| Heating flow and return connections | 3/4 inch male |
| Domestic cold inlet and hot outlet connections | 1/2 inch male |
| Radiator-mode heating setpoint range | 30-75°C |
| Underfloor-mode heating setpoint range | 30-75°C; installer configuration required |
| Hot-water storage setpoint range | 30-65°C |
| Weekly heating programmer | Built in |
| Wi-Fi network | 2.4GHz only |
| Remote-control app | MyBoiler; iOS and Android |
| Room thermostat integration | ONLY VOLT FREE room thermostats. To wire VOLT LIVE thermostat a RELAY is necessary. Supported with compatible control board and installer configuration |
| Operating modes | Summer: hot water; Winter: heating and hot water |
| Automatic tank hygiene function | 65°C anti-Legionella cycle; see manual for activation conditions |
