- New design and upgraded model
- Elektra, designed and produced in Italy
- Clean and safe form of heating and hot water solution
- Continuous hot water for its size – suitable for shower (Thermostatic shower mixer, highly recommended. Example: Grohe, Kohler, etc.)
- Suitable for radiators and underfloor heating
- Built-in smart controls
- 240v single phase
- Uses 50 Amps
- Use 10mm cable
- Flowrate: 8 Lt/min (Click here to check hot water graph)
- Completely silent due to Triac Based Technology.
- Modulates from 2kW – 12kW
- Digitally displayed temperatures
- Can be used with radiators or under floor heating
- Simply connect flow and return from heating circuit and cold supply for HW
- All components, for normal function of the boiler included inside
- Hot water limited to 50°C
- Central heating limited to 75°C
- Economical (see blue chart below) installer and user friendly.
- 5 Years warranty (extendable) – subject to boiler connected to internet & service booking (2 years standard)
- 1 x Elektra C Electric Combi Boiler
- 2 x 22mm Isolation Valves
- 1 x 15mm Isolation Valves
- 1 x Bracket

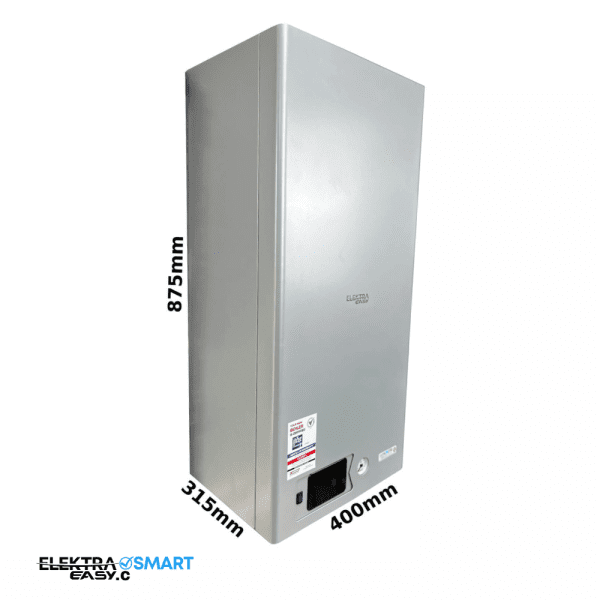

Package Dimensions: 440 x 940 x 4000mm
Package weight: 38.00 Kgs
All Parameters are the same for Elektra C & BP.
As BP has built in Cylinder. The Hot water delivery is better.
Hot water delivery 8 litres/min Constant. 40°C – 50°C (depending on the incoming mains water temperature).
To fill a bath, one would have to reduce the flow rate to fill a bath, which could take 15 min+.
Can only supply at one point due to pressure loss if you open two outlets.
Uses full 12kW or 50 Amps.
Graph (Hot water output):
