EK.C dimensions

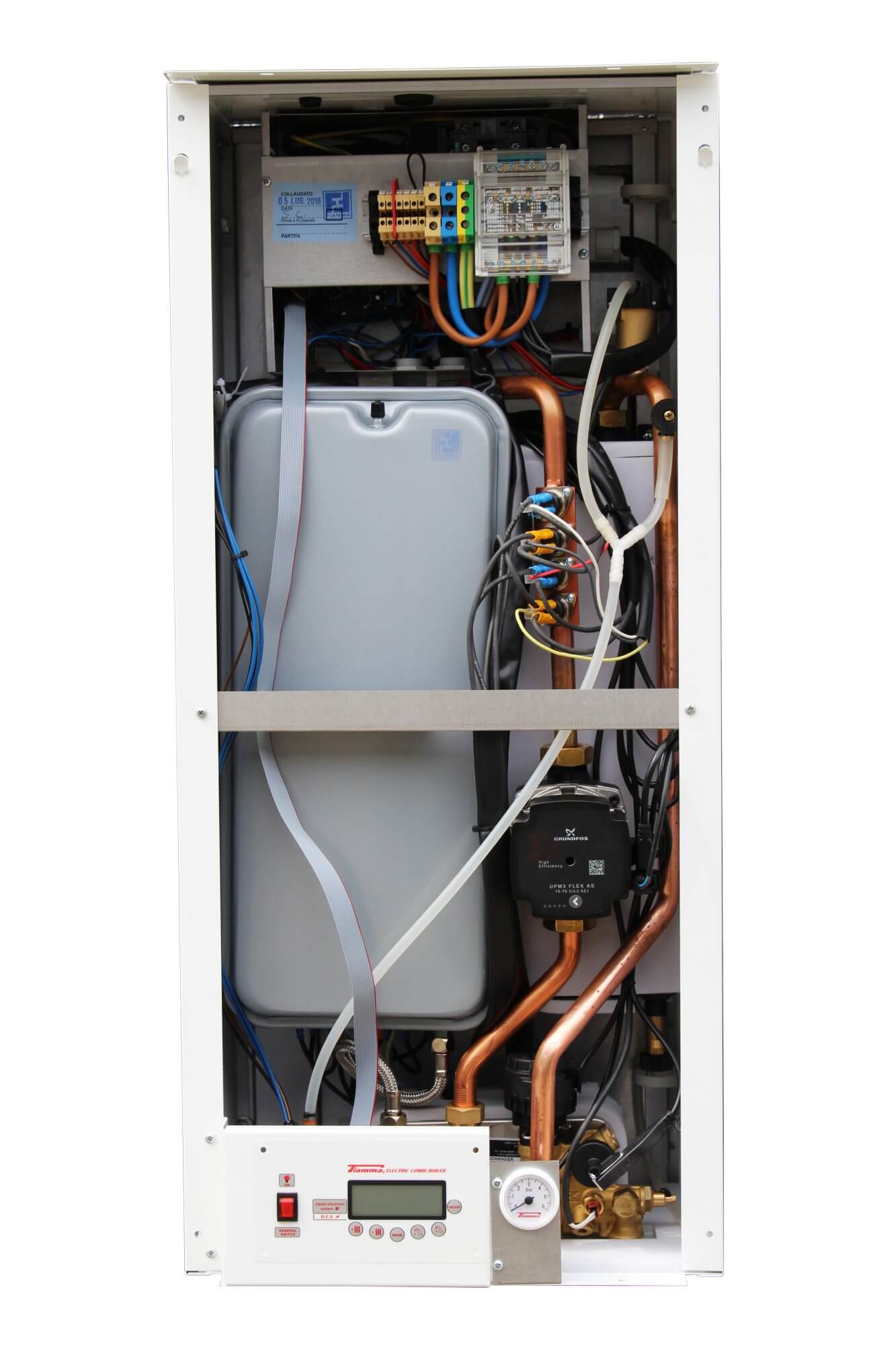

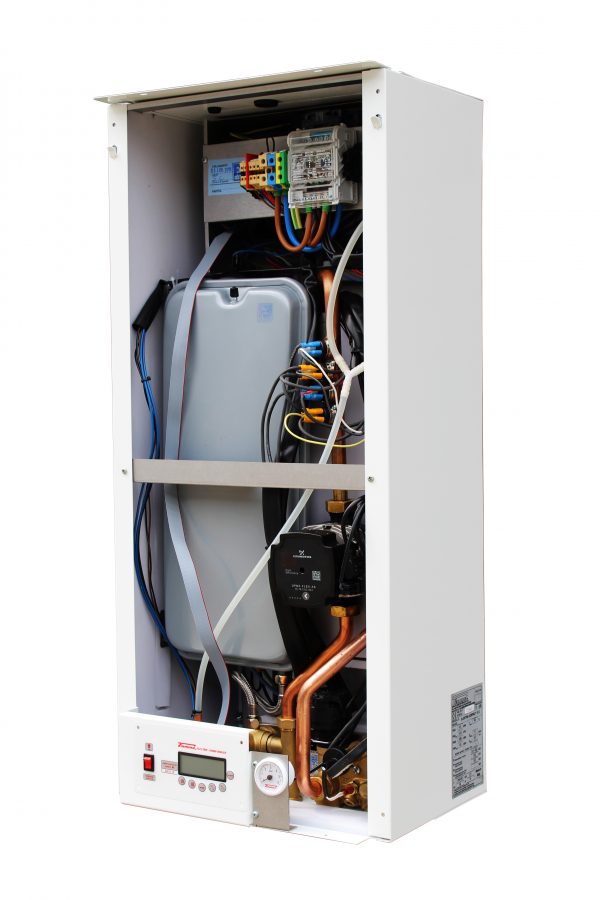

EK.C 12kW Electric Combi Boiler for smaller properties

£1,190.00
Ex-VAT

Wall hung electric combi boiler suitable for smaller properties and flats

Give instantaneous hot water

8lt/min at 40-50°C

Fully insulated

Suitable for one bathroom

875 (H) x 400 (W) x 300 (D)    (mm)



Download: Download Brochure download

Download: Quick Guide download

Download: Installation Manual download

Quantity*



  • Elektra, designed and produced in Italy
  • Clean and safe form of heating and hot water solution
  • Continuous hot water for its size
  • 240v single phase
  • Uses 50 Amps
  • Use 10mm cable
  • Flowrate: 8 Lt/min
  • Completely silent due to Triac Based Technology.
  • Modulates from 2kW – 12kW
  • Digitally displayed temperatures
  • Can be used with radiators or under floor heating
  • Simply connect flow and return from heating circuit and cold supply for HW
  • All components, for normal function of the boiler included inside
  • Hot water limited to 50°C
  • Central heating limited to 75°C
  • Economical (see blue chart below) installer and user friendly.
  • 2 Years warranty (extendable)

Package contents:

  • 1 x Elektra C Electric Combi Boiler
  • 2 x 22mm Isolation Valves
  • 2 x 15mm Isolation Valves
  • 1 x Bracket
  • Manual

____________________________________________

All Parameters are the same for Elektra C & BP.

As BP has built in Cylinder.  The Hot water delivery is better.

Elektra C:

Hot water delivery 8 litres/min Constant. 40°C – 50°C (depending on the incoming mains water temperature).

To fill a bath, one would have to reduce the flow rate to fill a bath, which could take 15 min+.

Can only supply at one point due to pressure loss if you open two outlets.

Uses full 12kW or 50 Amps.

____________________________________________
